Products

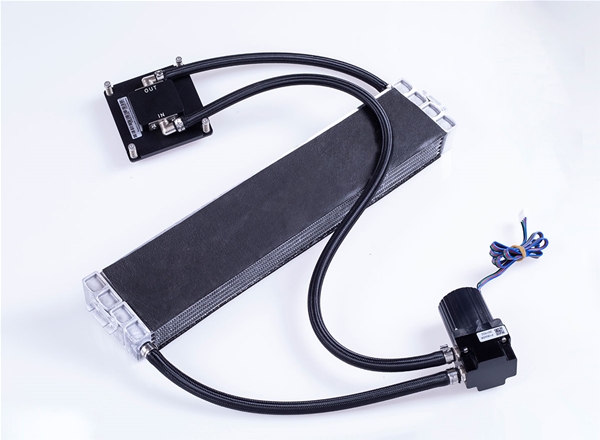

Close Loop for 1U

Technical parameters:
1. Heat Power : 0~600W
2. CPU socket type: LGA1700 (various models available)
3. Coldplate assembly dimension: 78mm * 78mm
4. Coldplate size : 90mm * 90mm * 25.8mm
5. Coldplate heat area: 44mm * 34.5mm
6. Pump voltage: 12V DC
7. Pump terminal Pin: 2510-4P FG/PWM
8. Pump size : 82.5mm * 45mm * 42mm
9. Radiator: 419mm * 81.6mm * 36mm (customizable)

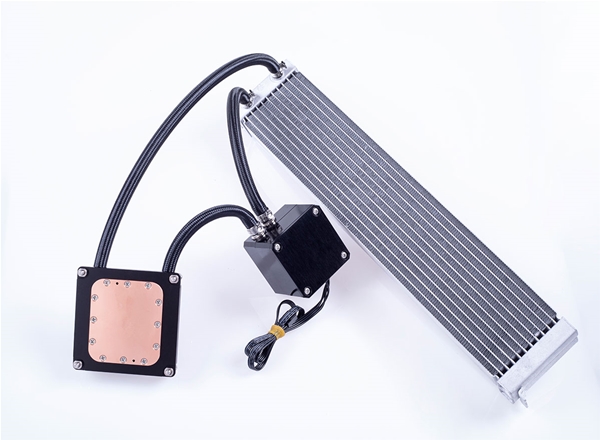

Close Loop for 2U

Technical parameters:
1. Heat Power : 0~600W
2. CPU socket type: LGA2066 (various models available)
3. Coldplate assembly dimension: 78mm * 78mm
4. Coldplate size : 90mm * 90mm * 25.8mm
5. Coldplate heat area: 44mm * 34.5mm
6. Pump voltage: 12V DC
7. Pump terminal Pin: 2510-4P FG/PWM
8. Pump size : 62mm * 62mm * 51.5mm
9. Radiator: 411mm * 40.8mm * 77.4mm (customizable)

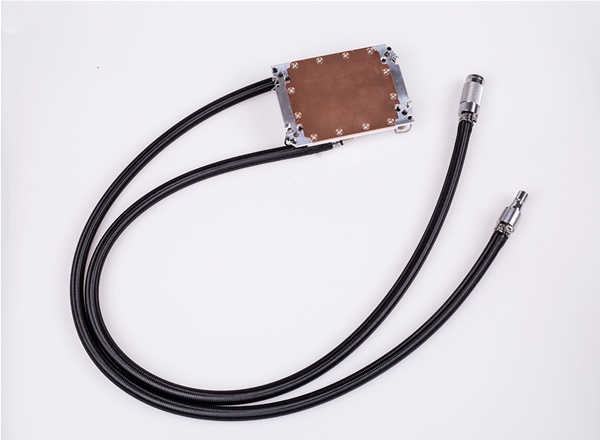

Open Loop

Key components: Coldplate +Quick Disconnector +Tube

Technical parameter:
1. Heat Power : 0~1000W
2. CPU socket type: LGA4189 (various models available)
3. Coldplate assembly dimension: 97.5mm * 57.6mm
4. Coldplate dimension: 113mm * 78mm * 25.3mm
5. Coldplate heat transfer area: 72*50
6. Pump size : 62mm * 62mm * 51.5mm
7. Quick Disconnetor DN: 5.5mm（ customizable)
Coldplate

Technical parameter:
1. Heat Power : 0~660W
2. CPU socket type: LGA2066/LGA2011
3. Coldplate assembly dimension: 80mm*80mm
4. Coldplate dimension: 90mm * 90mm * 25.8mm
5. Coldplate heat transfer area: 44mm*34.5mm
Coldplate

Technical parameter:
1. Heat Power : 0~800W
2. CPU socket type: AMD-SP3
3. Coldplate assembly dimension: 105mm*65.2mm/46mm
4. Coldplate dimension: 117.5mm * 82mm * 25mm
5. Coldplate heat transfer area: 79.5mm*36.5mm
G1/8 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ5.5mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: AL, balck anodized
9. Size of the Max OD: ∅ 18mm
G1/8 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ5.5mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 18mm
BLT483314 PUMP

Technical parameter:
1. Nominal Voltage: 12V DC
2. Nominal Current: 10A
3. Nrninal Power: 120W
4. Max Flow: 2800+/-10%L/H
5. Max pressure: 1.2+/-10%Bar
6. Size L * W * H (mm): 145 * 100 * 114
7. Life circle: 20000 hours
8. Tube diameter: ∅ 20mm
9. Temperature: -40 °~85 °
Coldplate

Technical parameter:
1. Heat Power : 0~1000W
2. CPU socket type: LGA4677
3. Coldplate assembly dimension: 102.5mm*57.6mm
4. Coldplate dimension: 118mm * 78mm * 25.3mm
5. Coldplate heat transfer area: 72mm*50mm
G1/4 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ9mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 27mm
G1/2 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ12mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 32mm
G3/4 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ16mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 47.3mm
BLT484614 PUMP

Technical parameter:
1. Nominal Voltage: 18~35DC
2. Nominal Current: 12A
3. Nrninal Power: 290W
4. Max Flow: 6000+/-10%L/H
5. Max pressure: 2.2+/-10%Bar
6. Size L * W * H (mm): 183* 115 * 147
7. Life circle: 20000 hours
8. Tube diameter: ∅ 30mm
9. Temperature: -40 °~85 °
One-way valve

A one-way valve, also known as a check valve or a check valve. Used in hydraulic systems to prevent reverse flow of liquid, or in pneumatic systems to prevent reverse flow of compressed air< Br> Technical parameters:
1. Opening pressure: 1PSI
2. Nominal diameter: ∅ 16.8 (customized)
2. Working pressure: 6-400PSI
3. Working temperature: -40 ° C~+150 ° C
Pressure relief valve

Relief valves are also known as safety valves. It can be automatically opened and closed according to the working pressure of the system, and is generally installed on the equipment or pipeline of the Closed system to protect the system safety. When the pressure inside the equipment or pipeline exceeds the set pressure of the relief valve, it automatically opens the relief valve to ensure that the medium pressure inside the equipment and pipeline is below the set pressure, protecting the equipment and pipeline from accidents< Br> Technical parameters:
1. Pressure relief valve opening pressure: customer specified (opening pressure tolerance ± 1 PSI)
2. Nominal diameter: ∅ 8 (customized)
3. Working pressure: 150-400PSI
4. Working temperature: -40C~+150 ° C
