Products

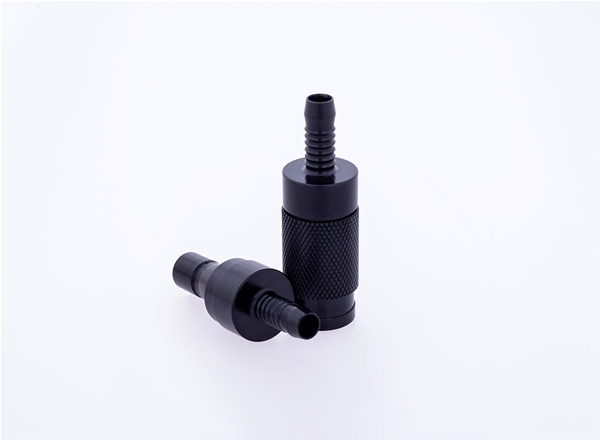

G1/8 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ5.5mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: AL, balck anodized
9. Size of the Max OD: ∅ 18mm
G1/8 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ5.5mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 18mm

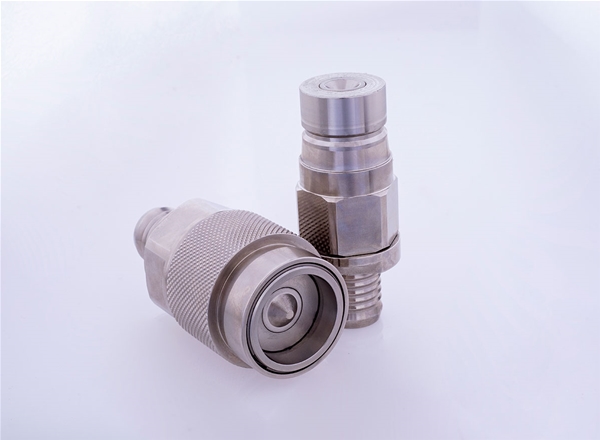

G1/4 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ9mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 27mm
G1/2 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ12mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 32mm
G3/4 Auto QDC

Technical parameter:
1. Nominal Diametor: Φ16mm
2. Insertion Circles: 1000tims
3. Flow direction: Bi Direction
4. Working Pressure: 100Psi
5. Max pressure: 400PSI
6. Sealing material: FLUORO-SILICONE
7. Storage temperature range: -40 ° C to 85 ° C
8. Material: stainless steel, surface electroplated
9. Size of the Max OD: ∅ 47.3mm
